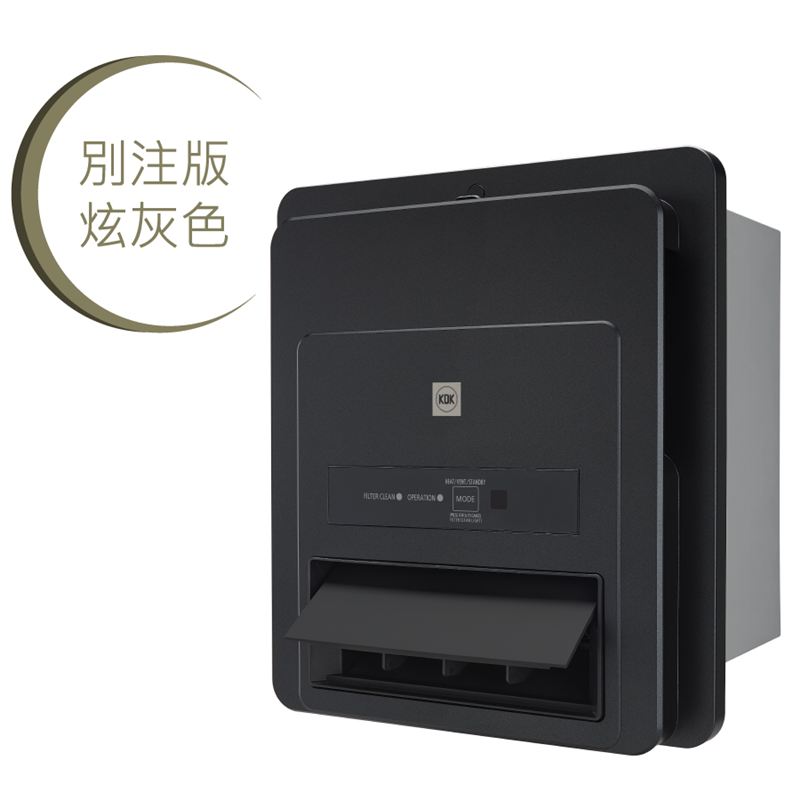

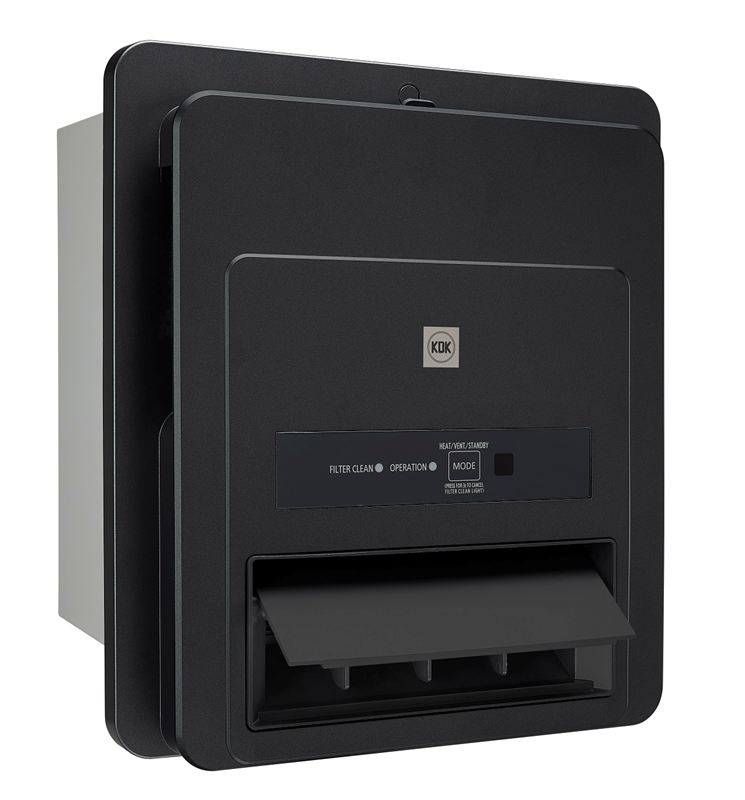

30BWBH/H

Window Mount – Thermo Ventilator (Charcoal Grey) Deluxe Type

  • New Care Mode allows auto-transition among Heating, Dry Hot and Ventilation functions according to different needs
  • Ventilation / Heating / Dry Hot (Clothes Drying) / Dry Cool (Circulation) Feature
  • Compact in size with louver width of 320 mm only
  • Air Direction: Vertical Auto/Fixed Swing; New Horizontal Manual Adjustment

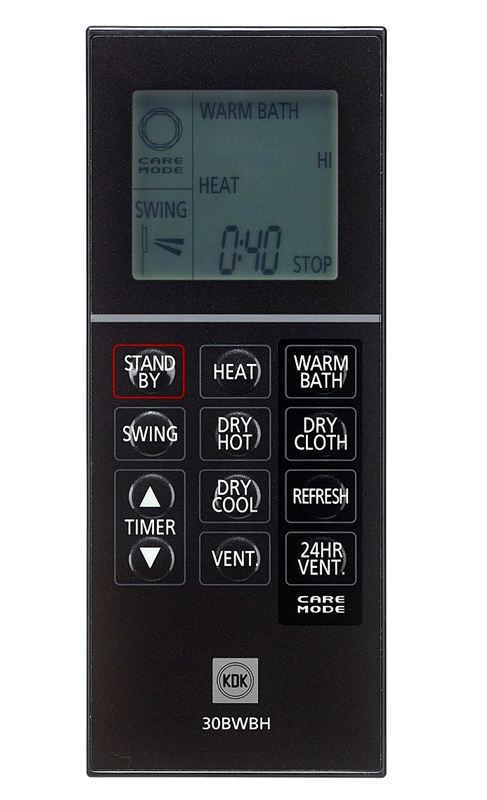

  • Remote Control for Easy Operation and Installation
Color: Charcoal Grey
Price: HK$3,580



Feature

kdk tvc icon eng.png
  • Window Mount Installation
  • Duct Installation is not required
  • Compact in size with louver width of 320 mm only
  • New Care Mode allows auto-transition among Heating, Dry Hot and Ventilation functions according to different needs
    • Warm Bath
    • Dry Cloth
    • Refresh
    • 24Hr Vent.
  • Ventilation / Heating / Dry Hot (Clothes Drying) / Dry Cool (Circulation) Feature
  • Heating, Dry Hot (Clothes Drying) and Dry Cool (Circulation) functions with Hi / Lo selection; Ventilation function with Hi / Mid / Lo selection
  • Remote Control for Easy Operation and Installation
  • Pre-set Timer Control Feature
  • Air Direction: Vertical Auto/Fixed Swing; New Horizontal Manual Adjustment
  • Antibacterial Filter
  • Max. Time
    - Heat: 180 mins
    - Vent. CONT.
    - Dry Hot: 360 mins
    - Dry Cool: CONT.
  • Size(mm) : 320 (W) x 350 (H) x 230 (D)

Specifications

30BWBH/H
30BWBH/H
Net Weight 5.5Kg
Power Source 13 A
Wattage Ventilation 38 W
Max. Wattage 1,440 W
Air Volume Ventilation 260 CMH
Noise Level Ventilation 45 dB
Heating 45 dB
Heater PTC
Control Type Wireless Remote
Care Mode Warm Bath/Dry Cloth/Refresh/24Hr Vent.
Heating Hi/Lo
Dry Hot Hi/Lo
Dry Cool Hi/Lo
Ventilation Hi/Mid/Lo
Timer 5-720 (Minute)
Filter Antibacterial Filter
No. of Motor / Blade 1 / 1
No. of Exhaust Outlet 1
Installation Hole Size 275 x 300 (mm)
10.82 x 11.81 (inch)
(W x H)

FAQ

🙋 Installation hole size and louver size

Model Type Installation hole size Height x Width (mm) Louver size Height x Width (mm)
23BWAH Window Mount 242 x 238 280 x 280
23BWBH Window Mount 242 x 238 280 x 280
23BWDBH Window Mount 242 x 238 280 x 280
30BWBH Window Mount 300 x 275 350 x 320
30BGCH Ceiling Mount 300 x 300 360 x 360
40BECH Ceiling Mount 280 x 400 350 x 472
40BLAH Ceiling Mount 280 x 400 350 x 472
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
